제품 상세 정보:
|
| 이름: | 병 몸체 캡 검사기 - 고속 비전 검사 시스템 | 속도: | 18,000병/시간 |
|---|---|---|---|
| 무게: | 대략. 200kg | 전원공급장치: | AC 220V / 50Hz |
| 키워드: | 병마개 검사기, 병 비전 검사 시스템, 약병 검사 장비 | 점검 범위: | 원형병(20ml~50ml) |
| 강조하다: | high-speed bottle cap inspection machine,vision inspection system for bottles,visual inspection equipment with warranty |
||

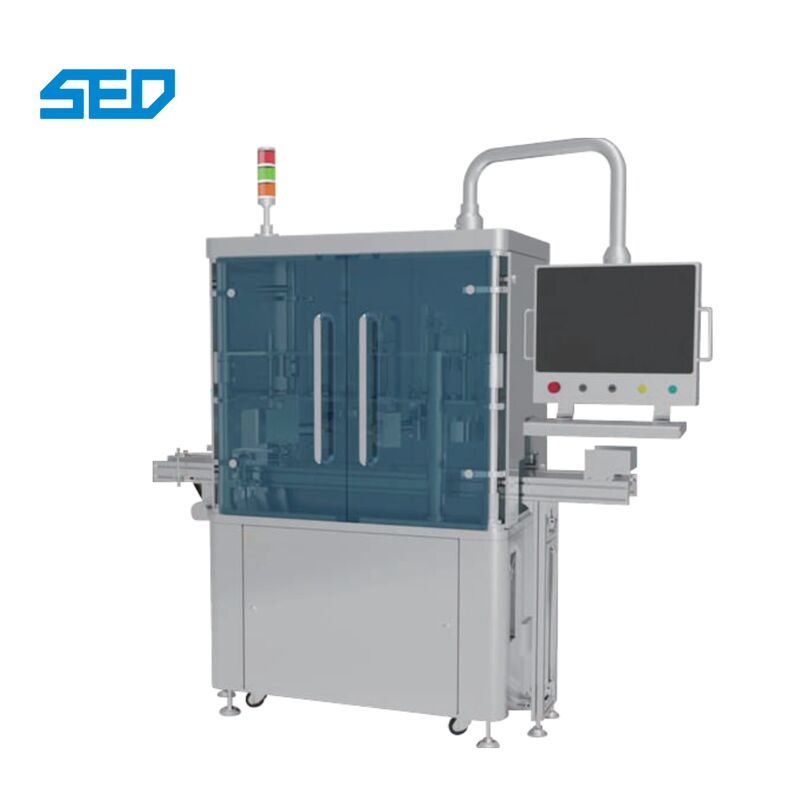

Product Overview of Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System
The SED-300SJT-B is an advanced vision-based inspection system designed for pharmaceutical and packaging industries. With an embedded structure and high-precision imaging technology, it ensures reliable detection of cap sealing defects and bottle quality issues.
Equipped with 5 synchronized 2D cameras, the system provides full-angle inspection for bottles and caps, ensuring product integrity before and after filling.
Product Parameters of Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System
|
Model |
SED-300SJT-B |
|
Dimensions (L×W×H) |
1000 × 700 × 1700 mm |
|
Inspection Range |
Round bottles (20ml – 50ml) |
|
Inspection Speed |
18,000 bottles/hour |
|
Inspection Content |
Cap Inspection: Tamper ring gap/leakage, tamper ring damage, broken ring, missing cap, high cap, dirty cap, burrs, misaligned cap, scratches, cracks, bottle leakageBottle Inspection: Contamination, black spots, damage, insufficient neck material, poor cutting edge, foreign objects at bottle bottom |
|
Power Supply |
AC 220V / 50Hz |
|
Power Consumption |
0.5 kW |
|
Machine Weight |
Approx. 200 kg |
Feature of Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System
1. Superior Imaging Performance
2. Comprehensive Bottle Inspection
3. User-Friendly Design
4. Compact & Easy Integration
5. Multi-Angle Inspection
6. Strong Compatibility
Show of Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System
